We are manufacturing all types of composite polymer insulators for Distribution, Transmission Lines as well as for Indian Railways as per RDSO specification No: TI/SPS/OHE/INSCOM/1071

Distribution Line Insulator

Post / Pin Insulator

From 11kV to 33kV we are making all types of insulators, Tension/Suspension, Pin Insulator, Post Insulator for GOAB / DO fuse, Line Post Insulator, and Support Insulator.

 11 kV Post Insulator11 kV Post Insulator



11 kV Pin Insulator11 kV Pin Insulator

Product Specification Table

Sr. No System Voltage
(kV)
Type of Insulator Mechanical Load(kN) Min.Wet power frequency withstand voltage  (kV) Min.Dry lighting impulse withstand voltage, (kVp) Min.Creepage Distance(mm) Type of Metal Fitting
1 11 kV Pin / Post 5 kN 35 75 320 Pin Fitting / Post Fitting/ Post Line Fitting
2 22 kV Pin / Post 6 kN 55 125 600
3 33 kV Pin / Post 10/14 kN 75 170 900/1130















Tension / Suspension Insulator

From 11kV to 33kV we are making all types of insulators, Tension/Suspension, Pin Insulator, Post Insulator for GOAB / DO fuse, Line Post Insulator, and Support Insulator.

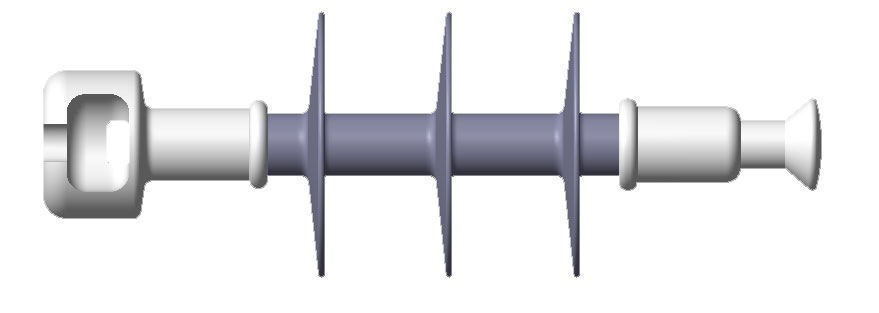

11 kV B & S Insulator
11 kV B & S Insulator

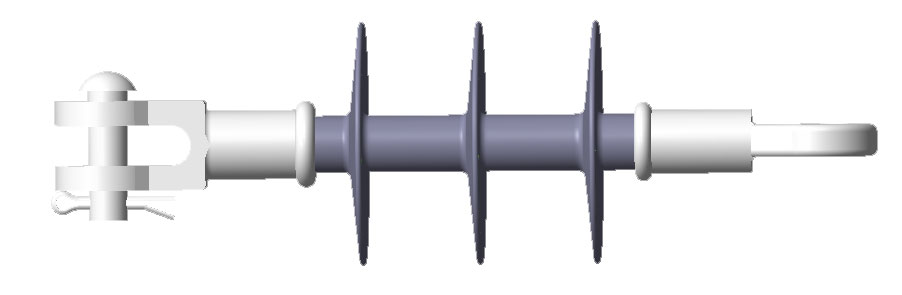

11 kV T & C Insulator
11 kV T & C Insulator

Product Specification Table

Sr. No System Voltage
(kV)
Type of Insulator Mechanical Load(kN) Min.Wet power frequency withstand voltage  (kV) Min.Dry lighting impulse withstand voltage, (kVp) Min.Creepage Distance(mm) Type of Metal Fitting
1 11 kV Suspension / Tension 45/70/90/120 35 75 320 Pin Fitting / Post Fitting/ Post Line Fitting
2 22 kV Suspension / Tension 45/70/90/120 55 125 600
3 33 kV Suspension / Tension 45/70/90/120 75 170 900

















Advantages of Composite Insulators over Conventional Porcelain Insulators :

  • Light weight, Ease of Installation and less transportation charge.
  • Resistance to breakage and vandalism.
  • Unique self-cleaning property, reduced maintenance cost.
  • Hydrophobicity and recovery of hydrophobicity make it suitable for polluted environment and salty atmosphere.
  • Low leakage current in long term ageing.
  • Resistance to puncher due to cutting age technology.
  • Superior UV & weather resistance properties.
  • Sustained hydrophobicity, resulting in lower leakage currents, reduced dry band arcing, and less risk of flashover,
  • Specially formulated high tracking resistance silicone rubber used for sheathing.
  • A higher mechanical strength to weight ratio which enables the construction of longer spans of towers.
